Standard Air Cylinders (Square Cover）
 | ・Weight: 10% lighter (ø50-100 stroke) Weight has been reduced by changing the shape of the rod cover and head cover. ・Small auto switches can be mounted on 4 surfaces. ・Fastener on auto switch mounting groove for dust-prevention (Option) ・With auto switch (MDB1 series, MDB1, MDB1W, MDB1K) |
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Standard | MB1 | Double acting, Single rod | 32, 40, 50, 63, 80, 100, 125 |

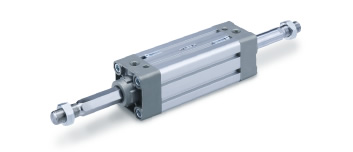

| Standard | MB1W | Double acting, Double rod | 32, 40, 50, 63, 80, 100, 125 |
| Non-rotating rod | MB1K | Double acting, Single rod | 32, 40, 50, 63, 80, 100 |
■Weight: 10% lighter (ø50-100 stroke)

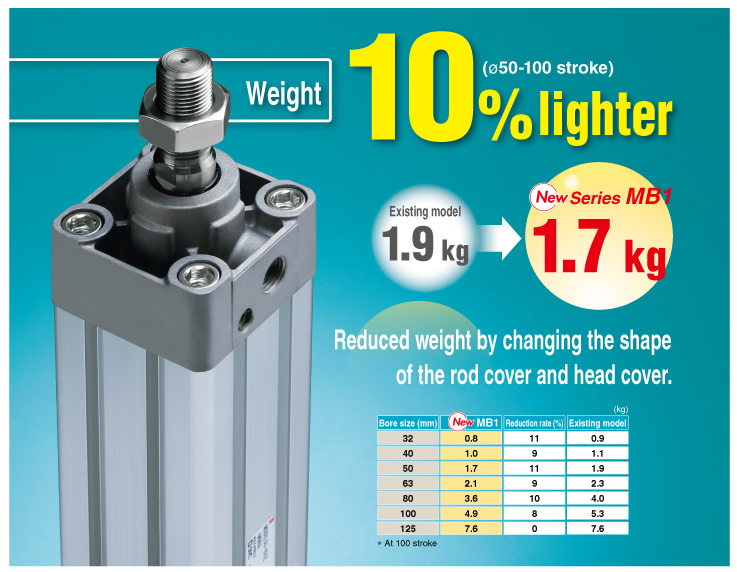

Reduced weight by changing the shape of the rod cover and head cover.

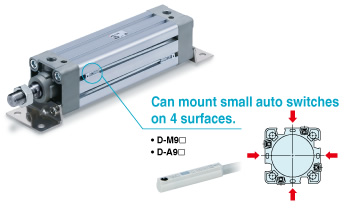

■Can mount small auto switches on 4 surfaces.

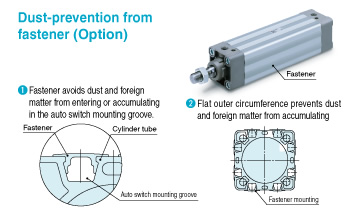

■Dust-prevention from fastener (Option)
■Applicable speed/load
- Piston speed: Max. 1000 mm/s (ø32 to ø125)

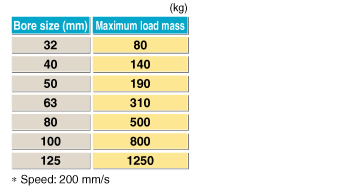

- Load yield: See table below.

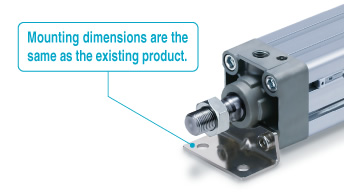

■Mounting dimensions are the same as the existing product.
■Non-rotating rod type added. New
- Series MB1K-Z

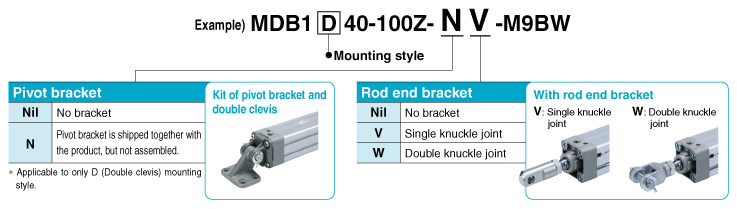

■Part numbers with rod end bracket and/or pivot bracket available
Not necessary to order a bracket for the applicable cylinder separately
Note) Mounting bracket is shipped together with the product, but not assembled.

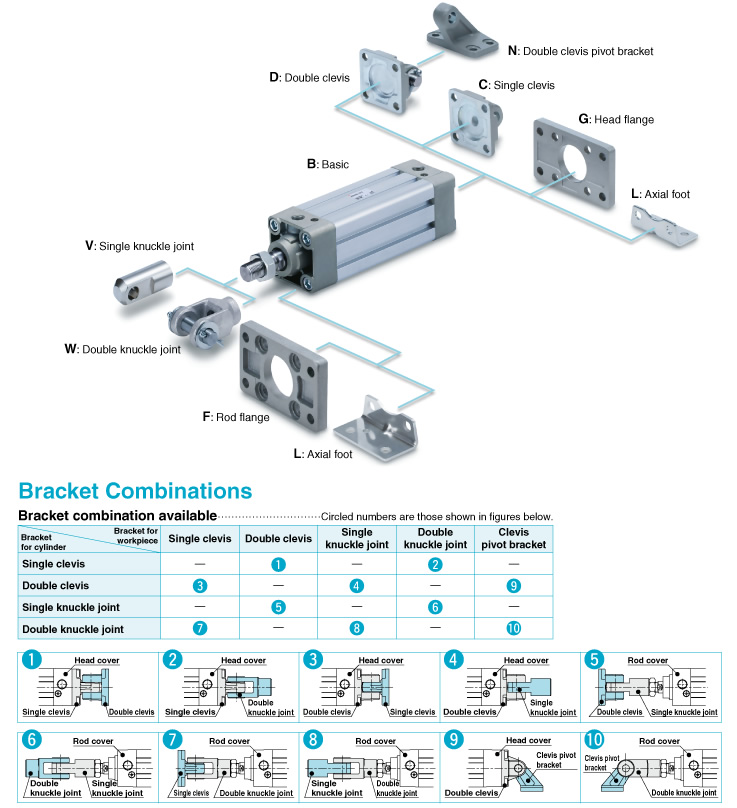

■Various mounting bracket options
- Suitable mounting brackets can be selected for the installation condition.
- Improved amount of mounting freedom

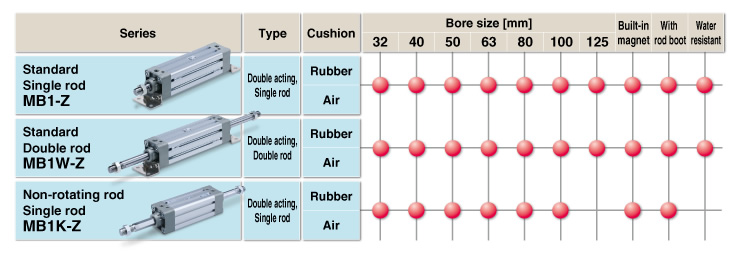

■Series Variations
Air Cylinder MB1/MDB1
- Product Code: MB1/MDB1 Square Tube Type Air Cylinder
- Availability: In Stock
-
-
